SKU: 40-50-127

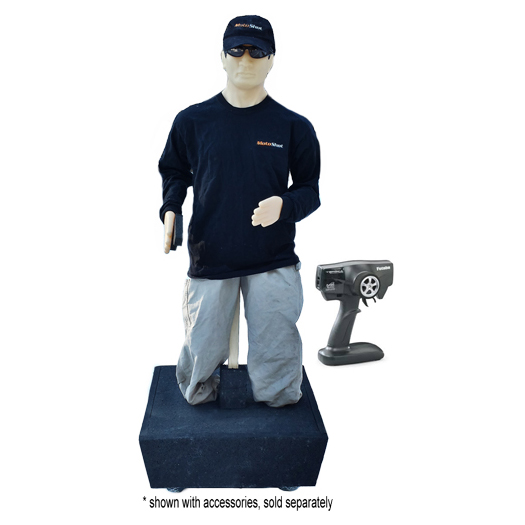

Ballistic Protected Target System includes:

  • MotoShot Ballistic Protected Target System
  • AR Ballistic steel protective shell wrapped in Dura-Panel Ballistic Rubber
  • Digital 2.4 GHZ Spread Spectrum Wireless Remote
  • Ballistic protected target bracket, accepts 2″x 2″ wood post
  • 2; 12 volt Quick Exchange Rechargeable Battery Packs
  • 2 Amp, 24 volt Quick Connect Battery Charger


** All target systems are custom built, expected lead times are 8-10 weeks

Dimensions: 12″ height x 26.5″ width x 28″ length

Gross Weight including on-board batteries: 160 lbs.

(does not include targets, sold separately)

*3D Target sold separately  HERE




MotoShot TCR-BP940 is the finest ballistic protected moving target system.  We have wrapped the ballistic resistant protective AR plate target system  shell with exceptional quality, high performing Dura-Panel ballistic rubber.  The MotoShot TCR-BP940 was designed to help reduce potentially harmful ricochet or splatter that may occur in close quarter training environments.

The TCR-BP940 MotoShot Moving Targets trapezoid design safely deflects errant or accidental rounds that may hit the MotoShot base safely downwards while the Dura-Panel䋢 ballistic panels stop and capture rounds without ricochet and splatter hazards.

MotoShot TCR-BP940 Target System Specifications:
Robot: All AR steel trapezoid design protective shell, robot is 100% encased in AR Steel. Steel base wrapped in premium quality Dura-Panel™ Ballistic Rubber panels
Wheels: 10” commercial grade, solid core, run flat tires. Mounted under protective ballistic shell, shielded from errant rounds.
Motors: Four 24 volt all steel, prime industrial grade, heavy-duty motors. Whisper quiet and super-durable. Self-lubricating gear box with sealed bearings.
Power System: Two on-board, rechargeable, quick exchange, 12 volt, 9AH sealed lead acid batteries. 1-1/2 hours average continuous run time per charge. 2 amp, 24 volt quick connect charging system. Heavy-duty external mounted “ON/OFF” switch for easy power down.
Operator Interface: Hand-held, trigger style 2.4 gHz digital spread spektrum remote. Operates at a range of up to 1000 meters, under ideal conditions. Movement in all possible directions, can spin in place 360°. 4 AA Battery powered.
Robot Interface: Heavy-duty motor controller for exceptional durability and control.
Speed: 7 feet per second
Dura-Panel™ Ballistic rubber protected steel target bracket accepts 2” x 2” posts.

Additional information

Weight160 lbs
