$3,749.00
SKU: 70-45-003

Included in Price:

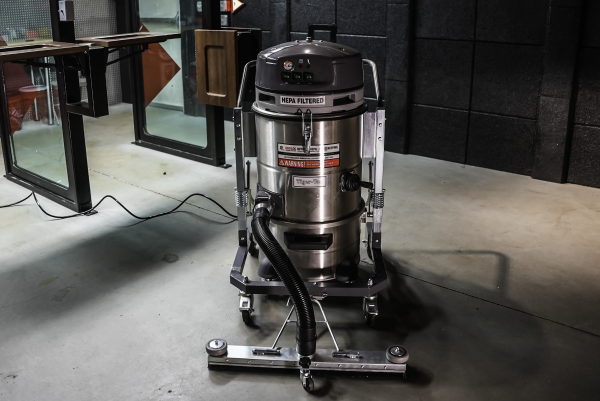

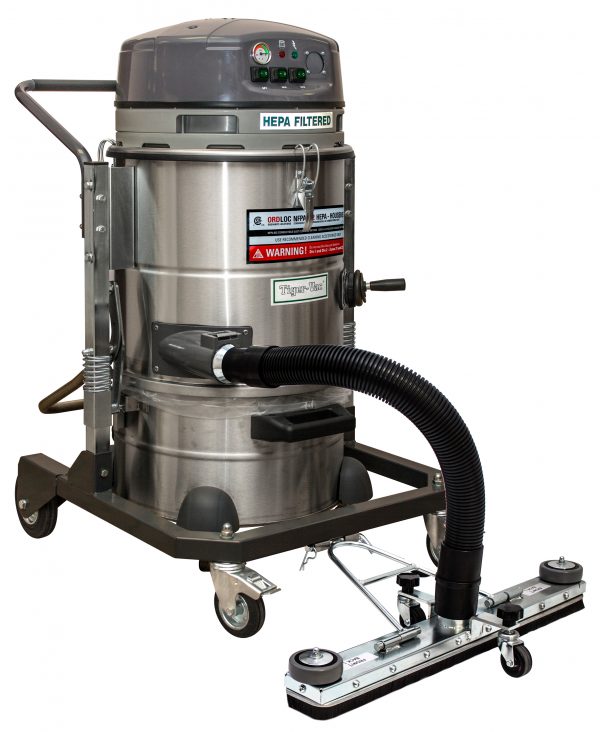

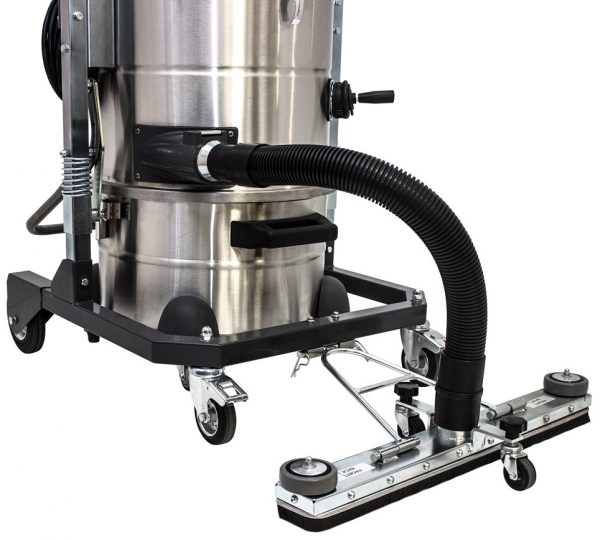

Tiger-Vac TV-201 DT ORDLOC 652 Vacuum with mounted floor brush

Description

Features:

  • Complies with NFPA 652 paragraph 8.4.2.2.1.7 (1) to (7)
  • 3 Motors: can be used individually or simultaneously.
  • Includes a Star Shaped Main Filter.
  • Manual Filter Shaker (MFS) system.
  • HEPA Filter – Included with an efficiency of 99.995% on 0.3 micron. Tested: IEST-RP-CC001, H14 by MPPS method as per EN 1822 and OSHA compliant. All of our
    HEPA Vacuum Cleaners are Aerosol Leak Tested before leaving our facility.
  • Filter chamber and recovery tank made of stainless steel Type 304.
  • Detachable Recovery Tank (DT) for easy disposal of recovered materials
  • Pressure gage and illuminated filter blockage indicator.
  • Includes a complete static dissipative tool kit



Technical Specifications:

  • Type (Powerhead): Electric
  • TEFC Motor: No
  • Voltage: 120 V
  • Hertz: 60 Hz
  • Phase: Single
  • Wattage: 2400 W
  • Power: 3.2 HP
  • Amperage: 15.8 amps.
  • Air Flow: 270 CFM
  • Vacuum Pressure: 71.5 ” H20
  • Sound Level: 70 dB(A)
  • Plug Type: 20 Amps
  • Suction Inlet: 70 mm
  • Cart Type: Detachable Tank (DT)
  • Filter Cleaning: Manual Filter Shaker (MFS)
  • Filter Type: Star Shaped + HEPA
  • Filter Surface Area: 21 ft² + 10.8 ft2
  • Dry Recovery – Tank: 10.5 Gal (40 L)
  • Length: 29 “
  • Width: 25 “
  • Weight (Vacuum Only): 122 lbs.
  • Height: 44 “
  • Cord Length: 30 ft.

Additional information

Weight 230 lbs
Dimensions 46 × 30 × 59 in
