SKU: 50-30-044

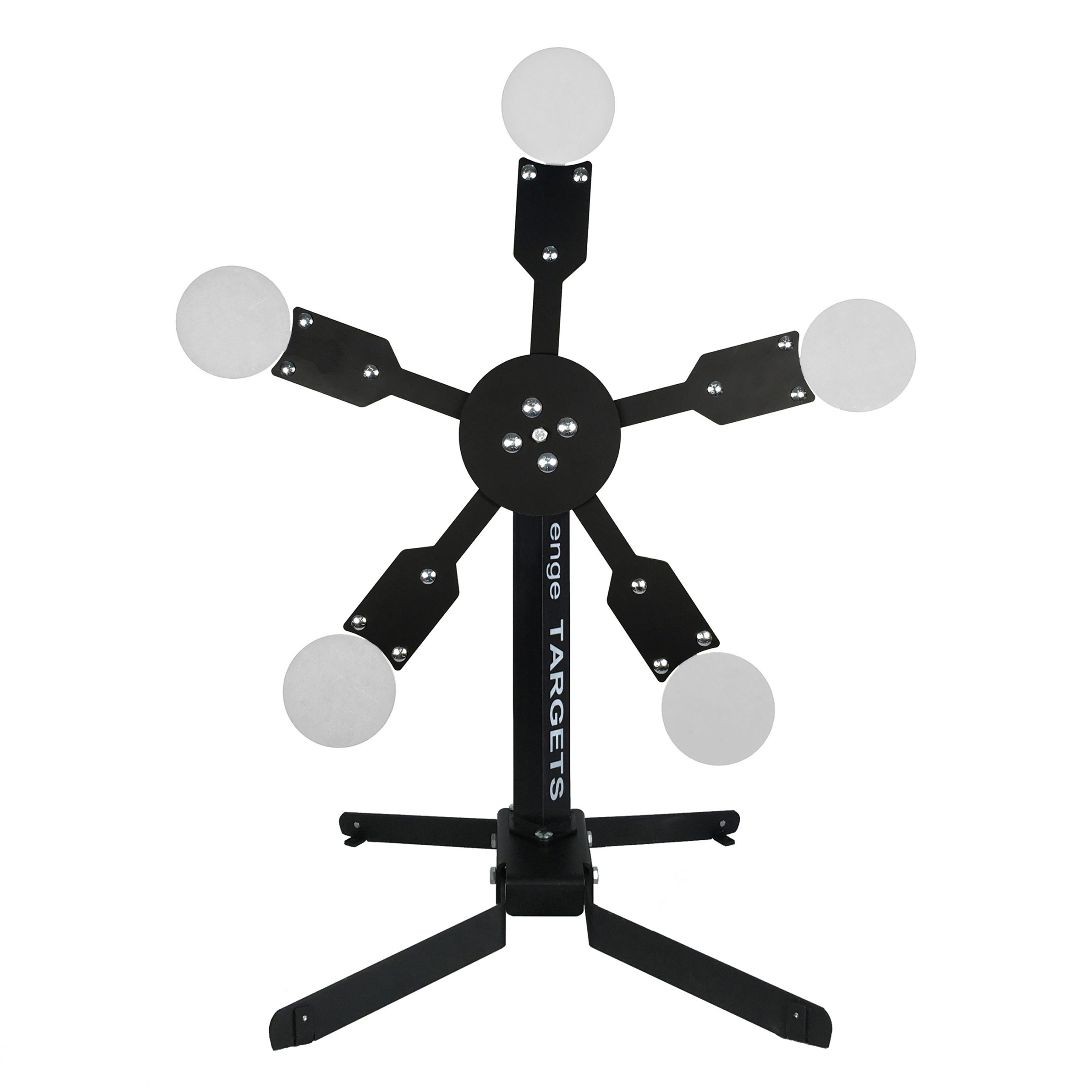

Portable Texas Star Target – Round Plates
  • PATENTED commercial grade design suitable for high volume use
  • Rated for handguns, rifles and shotguns (buckshot)
  • Maximum velocity at the target = 3,000 fps
  • Maximum energy at the target = 1,300 ft/lbs
  • Minimum shooting distance (handguns = 10 yards / rifles = 100 yards)
  • Includes (5) 6″ diameter x 3/8″ thick AR500 plates and arms

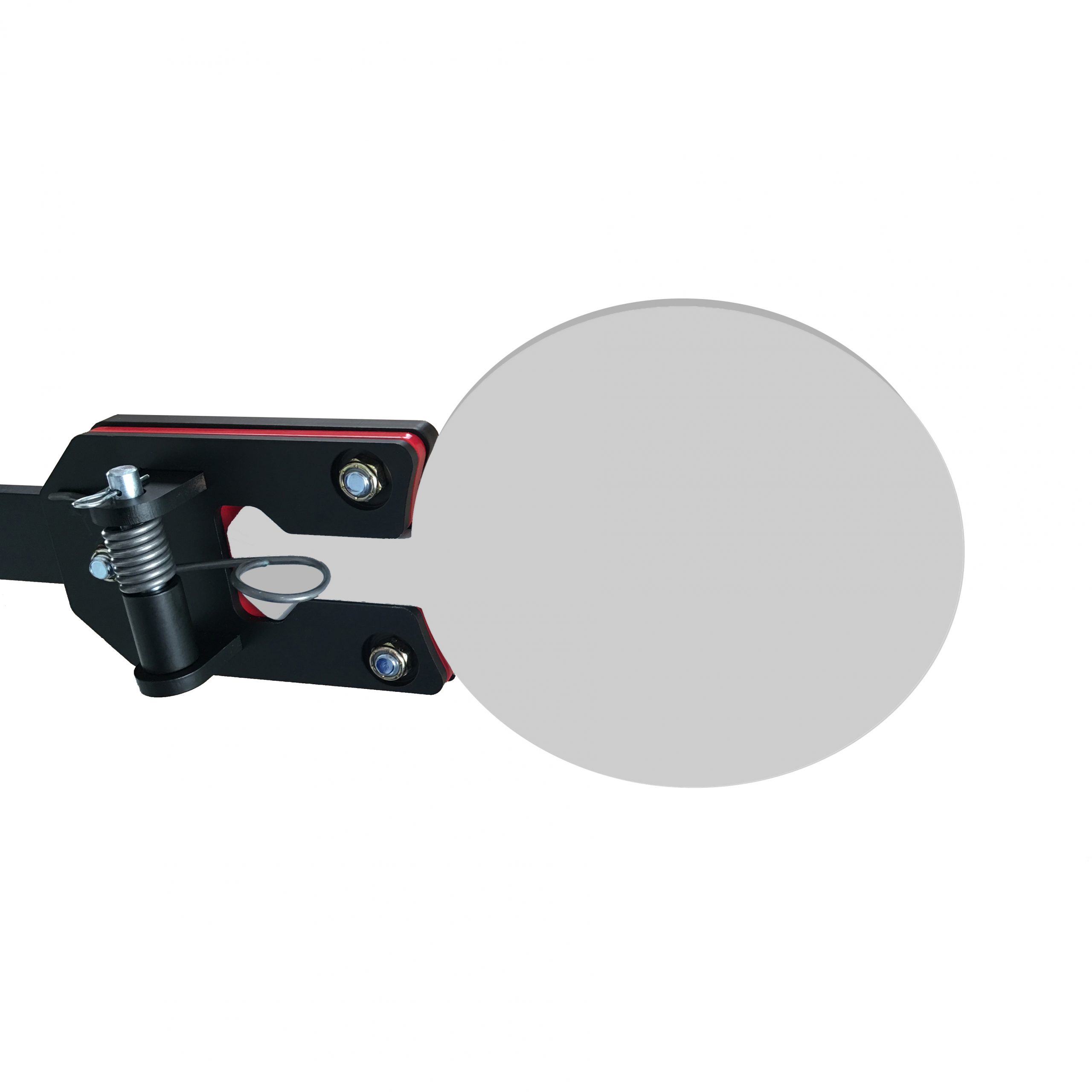

  • Spring retention system makes resetting the target quick and easy
  • Target height is 4′ 1″ tall when fully assembled

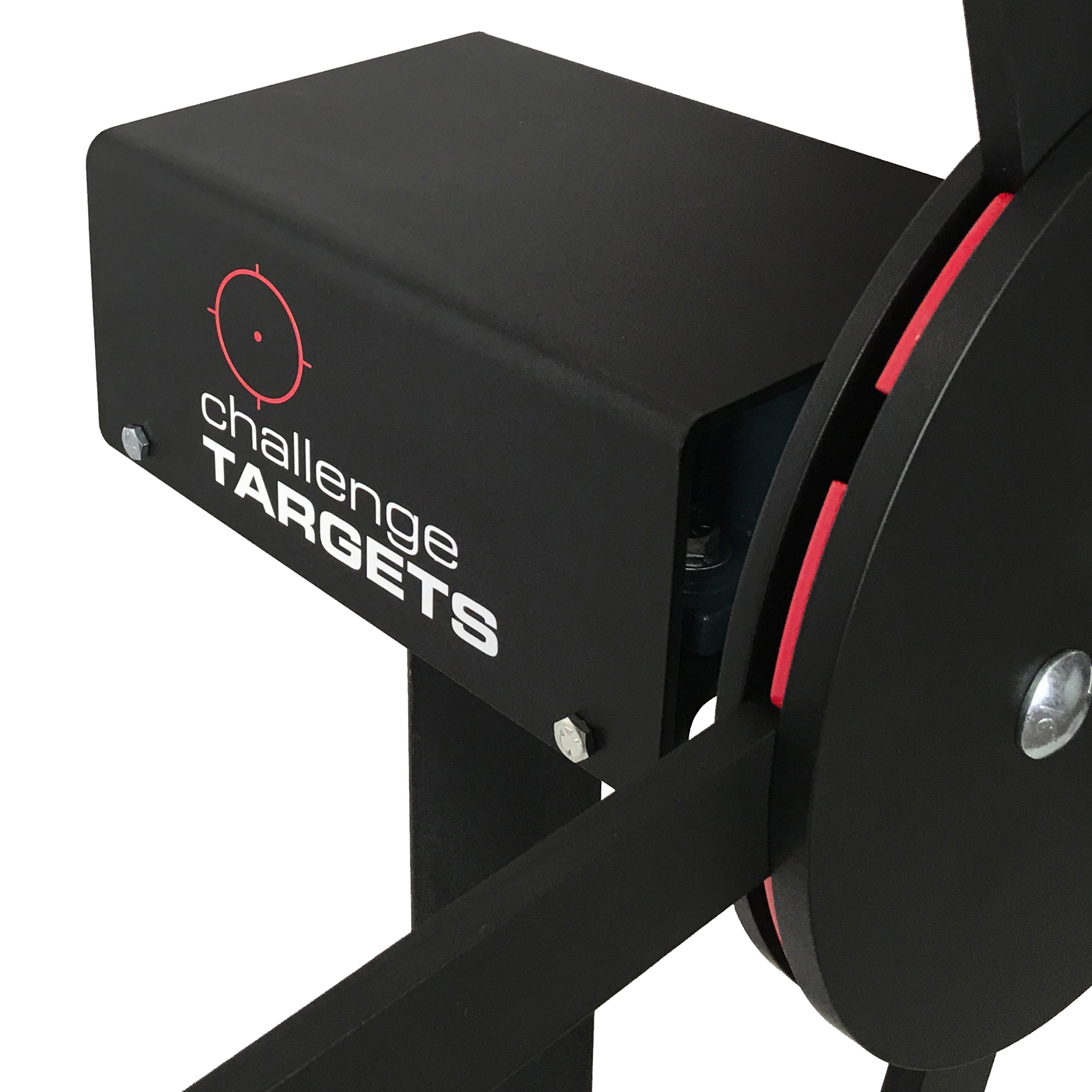

  • Heavy gauge cover protects pillow bearings from falling plates
  • Precision machined shaft is zinc plated for weather resistance

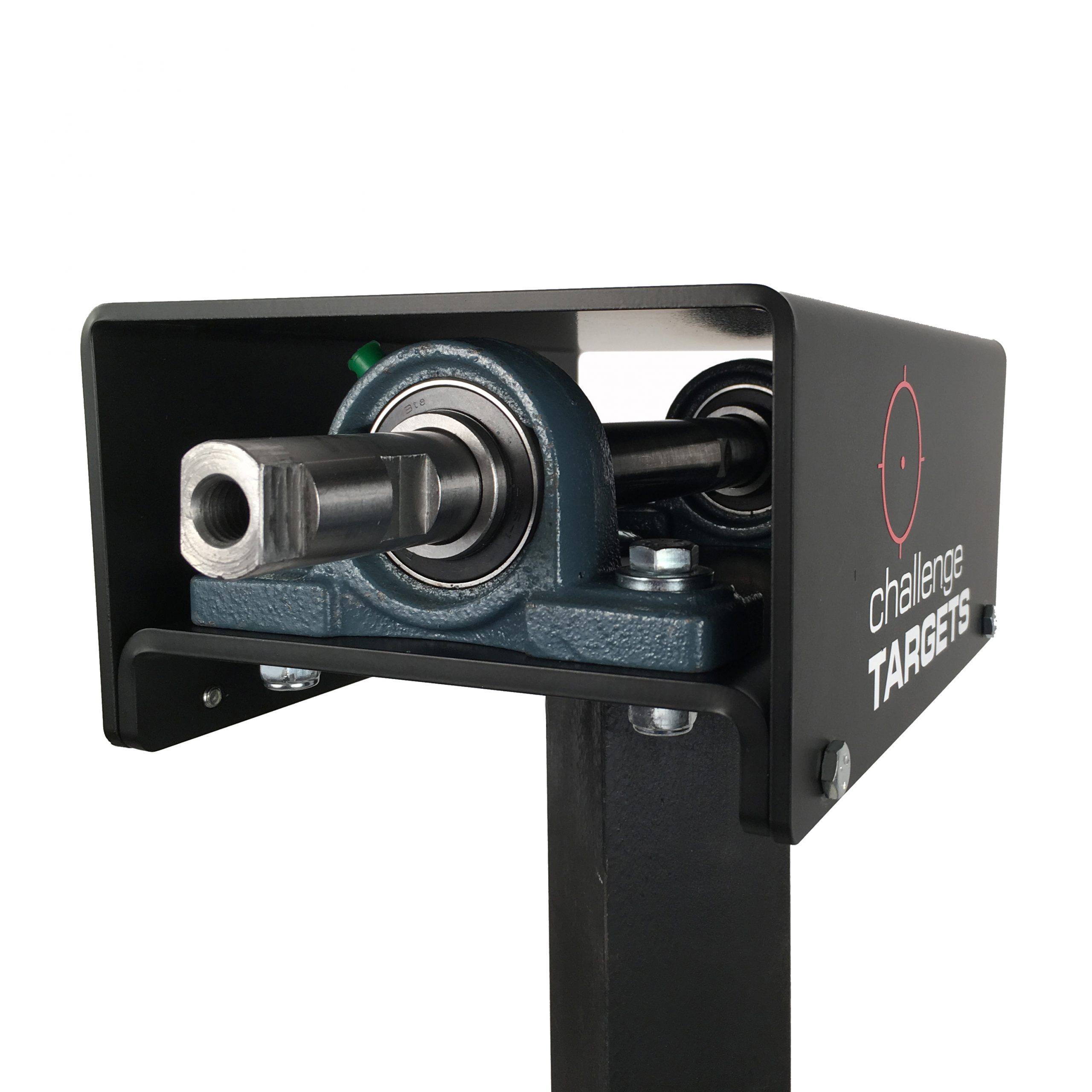

  • Includes (2) industrial grade, maintenance free, sealed pillow bearings
  • 29″ diameter hub assembly fits in any truck bed or SUV and it installs with a single bolt
  • AR500 components (Plates & Arms) ship unpainted


*Estimated 2-3 week lead time from purchase. Product ships directly from supplier, separate from any other products on your order.



The Portable Texas Star Target has the same durability and functionality as the full size Star, but in a compact design for added portability.  The 6″ plates are held in place with a unique spring retention system.  When shot, the plates are released from the retention pocket and fall to the ground.  The change in weight distribution causes the hub and plates to rotate.  The precision machined shaft and dual pillow bearings maximize the speed and change of direction with each successful shot. Resetting the target is quick and simple.  Just lift the spring and insert the stem of the plate into the pocket.  One person can reset all five plates in about 20 seconds.

The 6″ round plates are perfect for USPSA and 3-gun practice.  Once you get accustomed to shooting these reduced size plates, you’ll master the full size star in your next match!

The new Porta-Star target makes transportation, set-up and storage a breeze!


Overall Height: 4′ 1″ Tall
Plates: 6″ diameter x 3/8″ thick AR500 steel (plates ship unpainted)
Vertical Stem: 5/16″ thick A36 angle iron with black powder coat finish
Arms: 3/8″ thick AR500 steel (arms ship unpainted)
Finish Notes: AR500 Plates & Arms ship unpainted, other components are powder or liquid coated as shown
Total Product Weight: 105 lbs (Transports in 3 sections)
1) Stand, Angle Iron Post, Bearing Housing = 49 lbs.
2) Hub Assembly = 39 lbs.
3) Plates = 17 lbs.

Additional information

Weight 111 lbs
Dimensions 29 × 15 × 6 in
